Suspension Lift Kit

2 sold in last 8 hours
BLDV_BDS822H
Contact for Availability
Suspension Lift Kit
$1,938.60
BDS steps up the performance and capability of the 2016-2023 Toyota Tacoma 4WD trucks with a...

Availability changes quickly for BDS Suspension products. Please contact us to confirm stock, lead time, and shipping before ordering.

customers are viewing this product
Your cart
Product Product subtotal Quantity Price Product subtotal
PVG_BDS_18833_Suspension_Lift_Kit-BDS_Toyota_816FS_822FS
Suspension Lift Kit
Suspension Lift Kit
Regular price
$1,938.60
Sale price
$1,938.60/ea
$0.00
Sold out
Regular price
$1,938.60
Sale price
$1,938.60/ea
$0.00

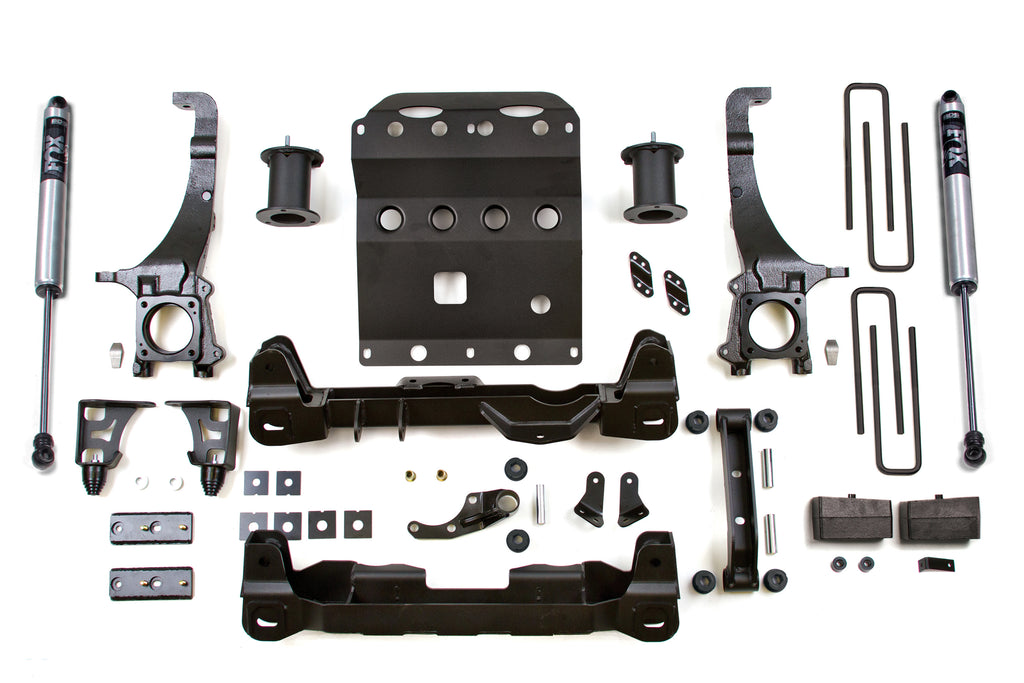

BDS steps up the performance and capability of the 2016-2023 Toyota Tacoma 4WD trucks with a 4-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles utilizing factory tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, lower control arm cams, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear, this kit utilizes heavy duty cast steel lift blocks, brake line bracket and longer u-bolts. The rear of this kit is rounded out with FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.


This Part Fits:

Year Make Model Submodel Notes
2016 Toyota Tacoma
2005 Toyota Tacoma Base
2006 Toyota Tacoma Base
2007 Toyota Tacoma Base
2008 Toyota Tacoma Base
2009 Toyota Tacoma Base
2010 Toyota Tacoma Base
2011 Toyota Tacoma Base
2012 Toyota Tacoma Base
2013 Toyota Tacoma Base
2014 Toyota Tacoma Base
2015 Toyota Tacoma Base
2017 Toyota Tacoma Edicion Especial
2018 Toyota Tacoma Edicion Especial
2019 Toyota Tacoma Edicion Especial
2020 Toyota Tacoma Edicion Especial
2017 Toyota Tacoma Limited
2018 Toyota Tacoma Limited
2019 Toyota Tacoma Limited
2020 Toyota Tacoma Limited
2021 Toyota Tacoma Limited
2022 Toyota Tacoma Limited
2023 Toyota Tacoma Limited
2021 Toyota Tacoma Nightshade
2017 Toyota Tacoma Sport
2018 Toyota Tacoma Sport
2019 Toyota Tacoma Sport
2020 Toyota Tacoma Sport
2017 Toyota Tacoma SR
2018 Toyota Tacoma SR
2019 Toyota Tacoma SR
2020 Toyota Tacoma SR
2021 Toyota Tacoma SR
2022 Toyota Tacoma SR
2023 Toyota Tacoma SR
2017 Toyota Tacoma SR5
2018 Toyota Tacoma SR5
2019 Toyota Tacoma SR5
2020 Toyota Tacoma SR5
2021 Toyota Tacoma SR5
2022 Toyota Tacoma SR5
2023 Toyota Tacoma SR5
2021 Toyota Tacoma Trail
2023 Toyota Tacoma Trail Special Edition
2017 Toyota Tacoma TRD Off-Road
2018 Toyota Tacoma TRD Off-Road
2019 Toyota Tacoma TRD Off-Road
2020 Toyota Tacoma TRD Off-Road
2021 Toyota Tacoma TRD Off-Road
2022 Toyota Tacoma TRD Off-Road
2023 Toyota Tacoma TRD Off-Road
2015 Toyota Tacoma TRD Pro
